References
Our project team has more than two hundred finished projects on which basis have produced electrical machines operated successfully around the world in different areas of application, mostly marine and power generation. Our standard project capabilities are detailed below.

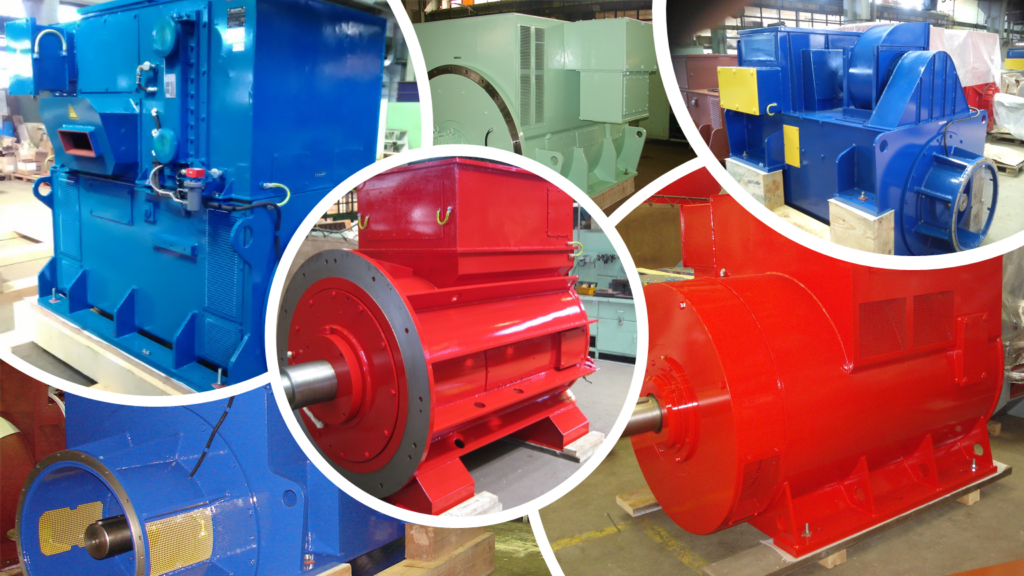

LOW – VOLTAGE
SYNCHRONOUS GENERATORS
- Power output : 145 – 5200 kVA
- Pole number : 4 - 16
- Voltage : 400 – 1500 V
- Frequency : 50 Hz; 60 Hz
- Efficiency : up to 97,6 %
- Mounting form : horizontal; vertical
- Height of axis : 280 - 800
- Protection : IP23, IP44, IP54
- Cooling : IC01, IC81W
- Insulation class : F (155F °C)
- Weight : 0,9 – 17,5 t
HIGH – VOLTAGE
SYNCHRONOUS GENERATORS
- Power output : 900 – 7000 kVA
- Pole number : 4 - 12
- Voltage : 4 – 13,8 kV
- Frequency : 50 Hz; 60 Hz
- Efficiency : up to 97,6 %
- Mounting form : horizontal; vertical
- Height of axis : 560 - 800
- Protection : IP23, IP44, IP54
- Cooling : IC01, IC81W
- Insulation class : F (155F °C)
- Weight : 4 – 20 t
SPECIAL
SYNCHRONOUS MACHINES
- Rotating converters
- 400 Hz synchronous machines
- Synchronous welding machines
- Locomotive traction generators
- Marine shaft generators
- Small three-phase and single-phase generators 5 to 100 kW
More information upon request.
