Mechanical Engineering Drawing
Making working drawings is final step in process of engineering design. The main purpose of technical drawings is to ensure unambiguous communication between project office and all other elements included in processes of product development and production. Based on many years of experience and hundreds of finished projects we’re able to make in short time complete working drawings for electrical machines production. In accordance with project data and drawings (2d and 3d models), we make:
- Detail drawings
- Assembly drawings
- Parts lists
- Schematic drawings (mechanical and electrical)

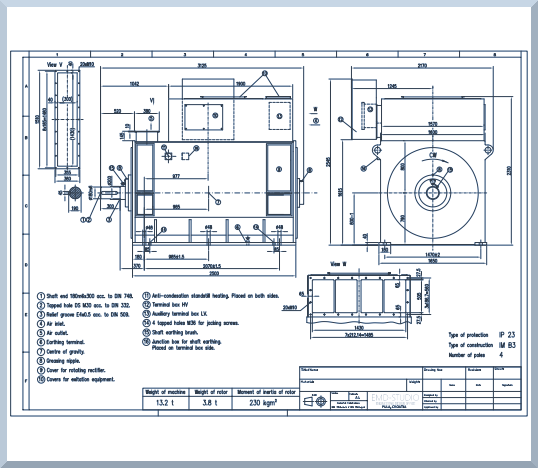

- Dimensional drawings

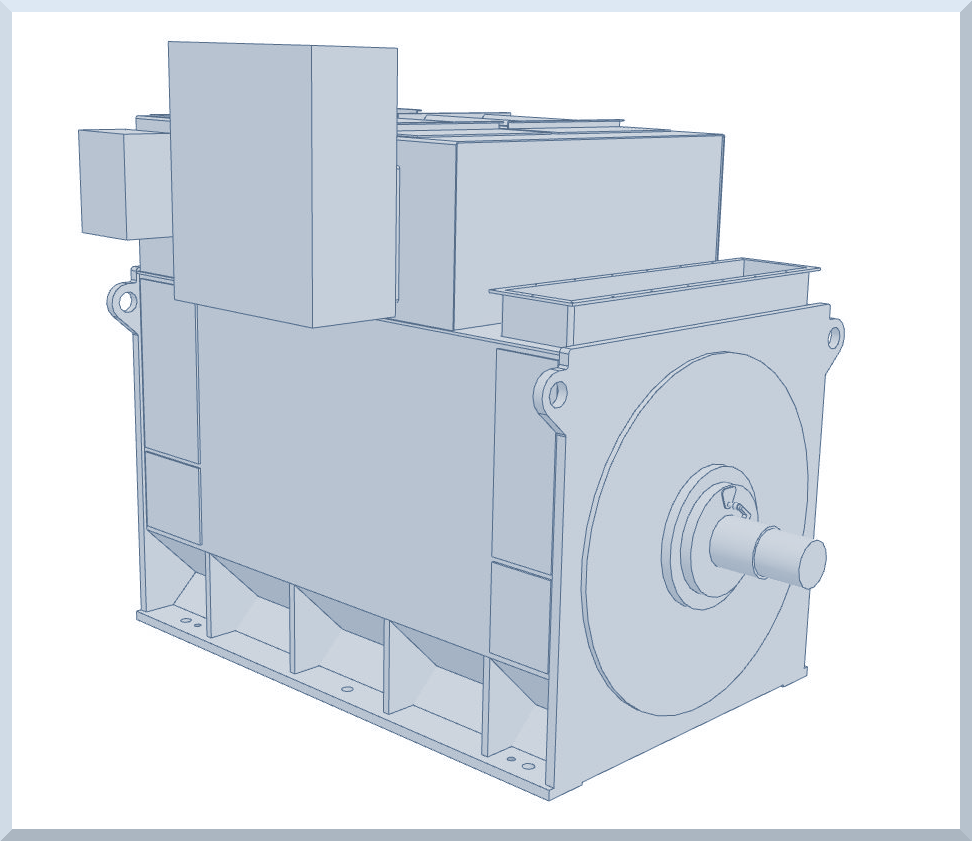

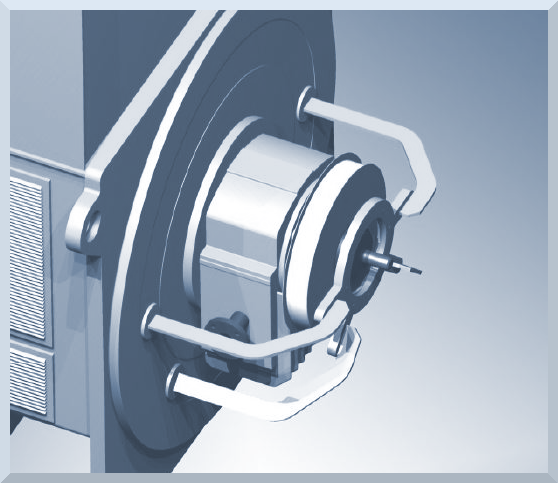

- Presentation drawing (3d rendered views)
We also offer drawing digitization services.
Our capabilities to make mechanical engineering drawings are not necessarily related only to electrical machines design. We can successfully apply our knowledge in other fields of engineering.
